MOFEEZ Power Distribution Block Bus Bar 4 × 3/8" Posts 6 × #8 Screws with Hammer Lug Crimping Tool, Marine Bus Bar 48V 250A for Automotive, Car, Boat, Solar Wiring
Product details
| Management number | 215151302 | Release Date | 2026/04/12 | List Price | $13.20 | Model Number | 215151302 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

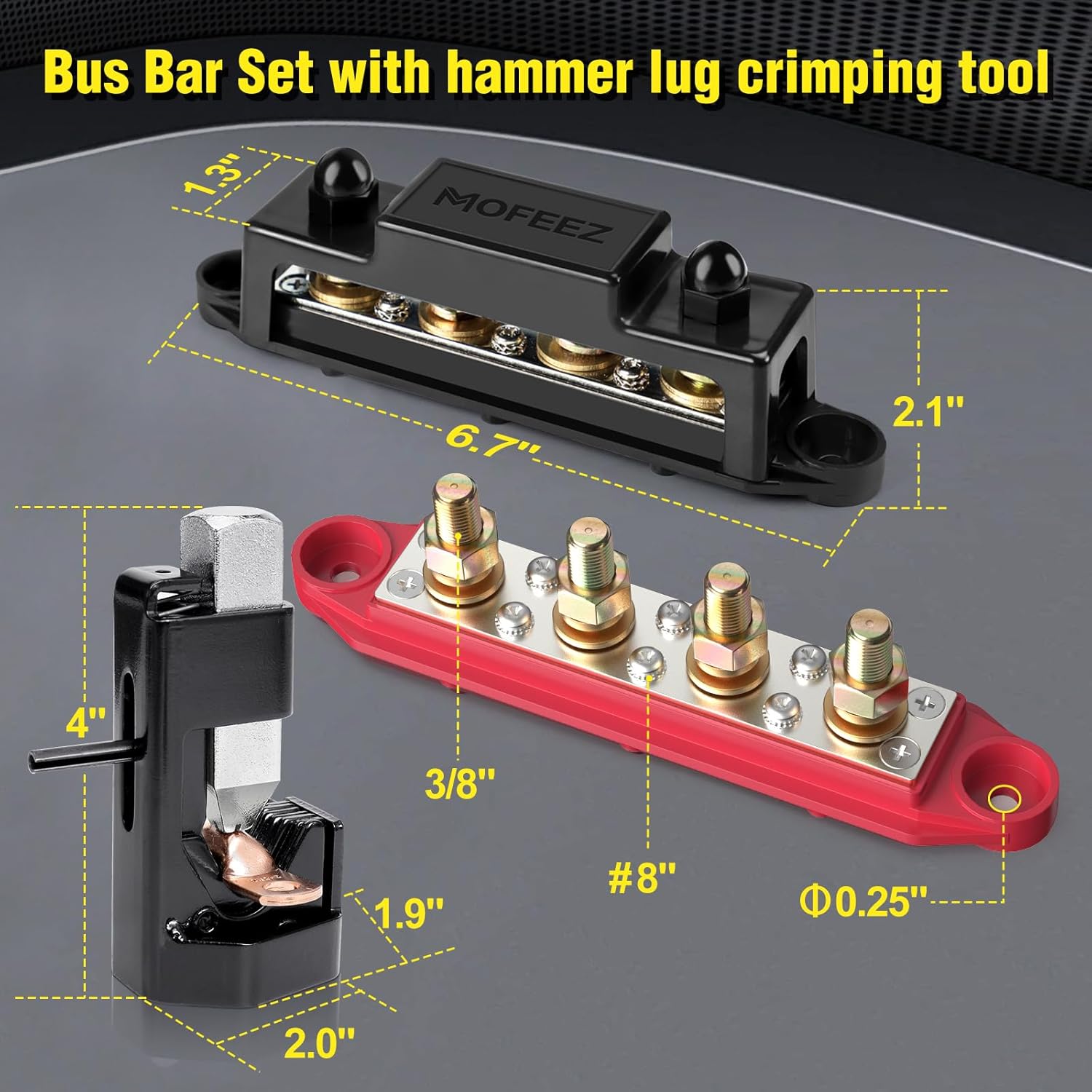

- What You Get：Marine bus bar includes 4 x 3/8" studs, 6 x #8 screw terminals, 1 x Hammer Lug Crimper Tool, 8 x copper lugs, 12 x ring terminals, 8 x shrinkable tubes
- Built for Safe：Mofeez bus bar has a stable structure. Nickle plated brass busbar plates offer low resistance, maximum conductivity. Nylon nuts connect to two external studs to prevent accidental short circuits. Removable Nylon cover keeps metal components from making contact with anything.
- Rating：Max voltage: 48VDC. Max continuous amperage: 250A for the entire connection. Maximum intermittent: 20A for each connection (less than 1 minute)
- Distribute Power More Efficiently：Battery bus bar provides several large gauge connections for running a dedicated ground to the battery and offers more minor gauge connections for lower voltage
- Wide Applications：Power distribution block bus bar is an excellent circuit collection wire harness in the car, RV, yacht, caravan, and ship power system. Busbar holds wide cables securely to keep the wires neat
| UPC | 612461407078 |
|---|---|
| Color | Black+Red |
| Model | MF18044N-2 |
| Brand Name | MOFEEZ |
| Item Weight | 2.9 Pounds |
| Part Number | MF18044N-2 |
| Manufacturer | Mofeez |
| Material Type | Plastic |
| Mounting Type | Panel Mount |
| Connector Type | Screw |
| Current Rating | 250 Amps |
| Number Of Poles | 4 |
| Number Of Contacts | 6 |
| Number of Positions | 4 |
