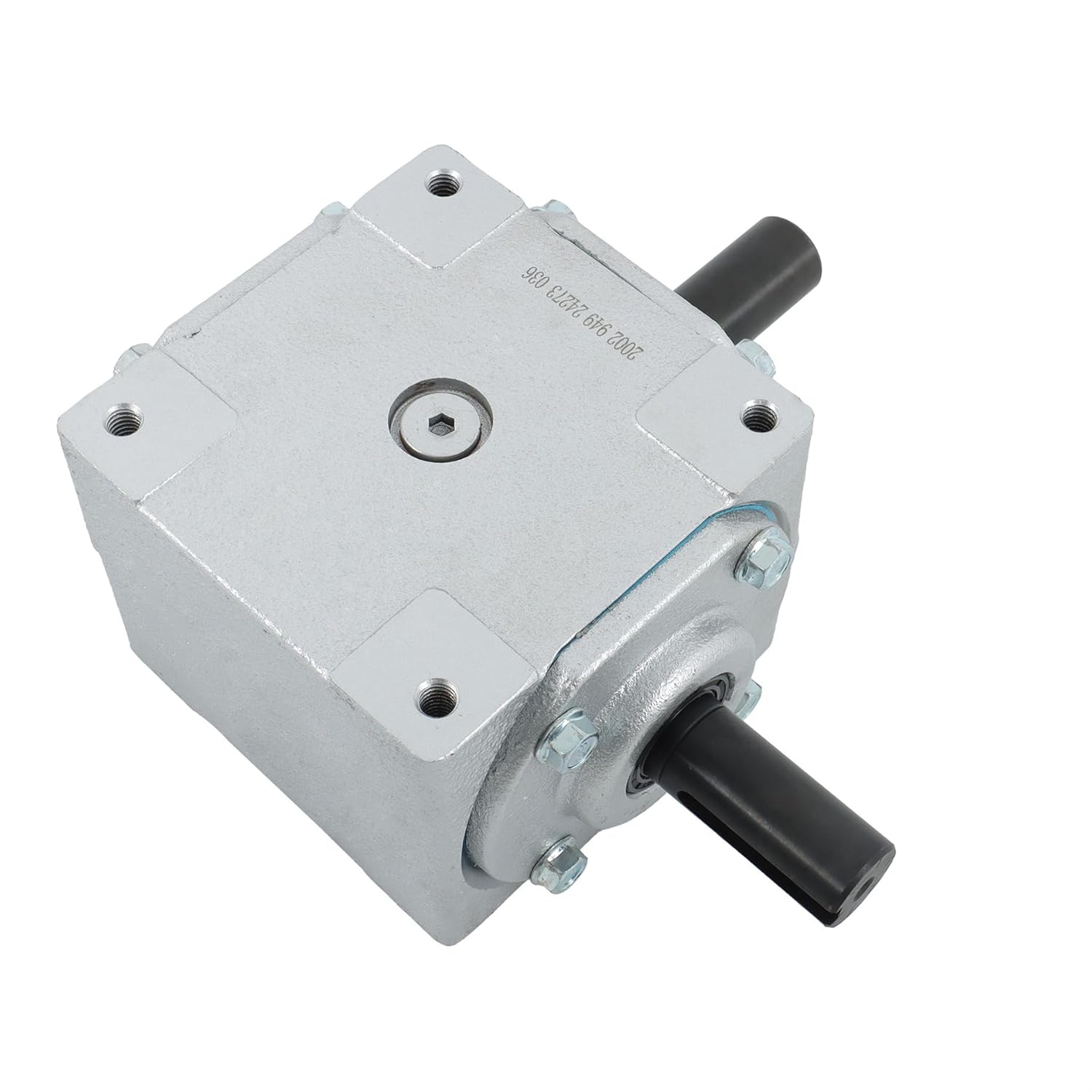

CW/CW 1:1 Right Angle Gearbox 19455-SR-KW-KW-GR with 2 Keyed Shafts 40HP for Mechanical Equipment

CW/CW 1:1 Right Angle Gearbox 19455-SR-KW-KW-GR with 2 Keyed Shafts 40HP for Mechanical EquipmentSpecification: Input shaft: 1 inch diameter x 2-1/4 inch length with 5/16 inch cross-holesOutput shaft: 1 inch diameter x 2-1/4 inch long with 1/4 inch keywayBolt holes: 4-1/4 inch square layout with 3/8 inch threaded holesSize: 5-7/8 inches x 6-1/2 inches x 4-1/8 inchesModel: Replacement for 19455-SR-KW-PH-GRFeatures:The body is made of thickened cast iron, not easy to rust and vibrate, can withstand 40 horsepower high load work without pressure.Bottom 4-1/4 inch square bolt holes, adapt to the mainstream bracket on the market, 3/8 inch threaded holes for direct fixing, firm and no wobbling.Whether it's replacing an old part or upgrading a drivetrain for a machine, this gearbox gets the job done at an excellent performance ratio.

• Material: Right-angle gear box is not easy to rust, made of thickened cast iron, not easy to be damaged, and can withstand high loads of 40 horsepower
• Application: Power is shifted from horizontal to vertical by means of a 90° right-angle design for agricultural machinery, production line equipment or small machines with compact spaces
• Specification: Input shaft: 1 inch diameter x 2-1/4 inch length with 5/16 inch cross-holes; output shaft: 1 inch diameter x 2-1/4 inch long with 1/4 inch keyway
• Replacement: Replacement for 19455-SR-KW-PH-GR, perfectly compatible in sizeb
• Install: Input and output shafts fit directly to equipment, bottomed by 4-1/4-inch square bolt holes and 3/8-inch threaded holes for most equipment
